I just wanted to write a quick post about how you may connect with us throughout the social networking world. Below are links for our social networking sites where you can as us questions, give us feedback, get general information and even get quite a bit of technical information as well!
Antenna Gear on Facebook (Profile)
Antenna Gear on Facebook (Place Page)
Antenna Gear on Twitter
Antenna Gear on Empire Avenue
Antenna Gear on Google+
Wednesday, July 20, 2011
Tuesday, July 12, 2011
Sprint Sierra Wireless 250U USB modem
This is the Sierra Wireless 250U USB modem. You can sign up for the mobile broadband service through Sprint or through Time Warner Cable (In select locations). Here you see where both of the antenna ports are and the purposes of each port.
This is the only 4G/3G antenna we offer for Sprint and Time Warner. This antenna is great and portable, will Velcro to the back of your laptop/desktop. We would only recommend getting this antenna if you have two bars of service or more This antenna will also work on the GPS frequency. View the specs below for more information on this antenna!
- 4 Band 4G / 3G BLADE External Antenna Signal Booster w/ OEM SMK TS-9 Conncetor & Velcro Mount. This Rugged Antenna Has Been Approved and Sold by Alltel, Verizon, T-Mobile, Cingular / AT&T, Sprint / Nextel, Telus, Telstra and Other Service Provider Agents Nationwide/Worldwide!!
- Advanced Hi-Gain Multi-Band(AMPS HSDPA EDGE EVDO 3G GPRS UMTS CDMA WCDMA TDMA GSM - Digital & Analog) Technology Delivers Maximum Reception - Up To 5 Times More Signal (3dBi - 5dBi System Gain) Than Your Wireless Equipment Used Inside Vehicles / Homes / Buildings Without External Antenna.
- Omni-Directional (3G / 4G) - Supports Wireless Technologies: 4 Band Multi-Mode Frequencies (WiMax 2500 MHz with MIMO support, CDMA 850/1900 MHz and GPS 1575 MHz) Tuned Specifically For WiMax, GPS, CDMA Wireless Equipment - Nationwide/Worldwide Use!!
- Hi-Density Polymer Construction (5.5"Tall x 1"Wide) Assures Superior Durability - Withstands Rigors of Every Day Use - For Inside & Outside Use - NOT Weatherproof.
- Includes - 20" OEM SMK TS-9 Antenna Coax Cable For Sierra Wireless Broadband Modems.
- Includes - Adjustable Velcro Mount - Versatile Easy-On / Easy-Off Mounting!!
This is a must read if you plan on using an amplifier or other device alongside the antenna!
{EAV_BLOG_VER:5c2b4d4c48df0b5a}
Good morning to all from the East coast! If you are using an amplifier, repeater, an adapter from a different manufacturer or even an antenna from a different manufacturer with one of our antennas/adapters this is very important.
There are five different types of connections that can be used on all these devices they are:
-SMA (Male and Female)
-N (Male and Female)
-TNC (Male and Female)
-MCX (Male only)
-FME (Male and Female)
There are others but these are the most common. All of our equipment uses the FME type connector. For example if you are using an amplifier from Cyfre, Wilson or another manufacturer you will need to find out which of these connections they are using.
Once you find out the connection type we'll be able to get you a little barrel adapter that goes from the connection we use, FME, to (x) connection they use on their device.
By the way, ignore the string of random numbers at the top, it was required by another social networking site in order for us to be able to tie our blog into their site.
Good morning to all from the East coast! If you are using an amplifier, repeater, an adapter from a different manufacturer or even an antenna from a different manufacturer with one of our antennas/adapters this is very important.
There are five different types of connections that can be used on all these devices they are:
-SMA (Male and Female)
-N (Male and Female)
-TNC (Male and Female)
-MCX (Male only)
-FME (Male and Female)
There are others but these are the most common. All of our equipment uses the FME type connector. For example if you are using an amplifier from Cyfre, Wilson or another manufacturer you will need to find out which of these connections they are using.
Once you find out the connection type we'll be able to get you a little barrel adapter that goes from the connection we use, FME, to (x) connection they use on their device.
By the way, ignore the string of random numbers at the top, it was required by another social networking site in order for us to be able to tie our blog into their site.
Monday, July 11, 2011
Mobile Broadband Router by MoFi
We now offer the: MoFi Network Router on our website!
Dual-function router can be used as a standard high performance N Router that can use any 3G/3.5G USB modem* (portable internet) and share it with many wired or wireless or can use the standard Cable or DSL connection for your home or office.
1.0 OVERVIEW
Dual Function as HSPA Support for 3G Mobile Broadband Router and 4-Port Wireless-N Broadband Router
HSPA Support for 3G Mobile Broadband Router to Enjoy Full Mobility, and Wire-Free for Internet Connectivity Anywhere
MOFI NETWORK MOFI3500-3GN 4-Port Wireless-N Router plus HSPA Support for 3G Mobile Broadband is an IEEE802.11n wireless broadband Router with HSDPA/HSUPA 3G support. With a 3G HSDPA USB modem simply plug in the Router, an Internet connection can be accessed and shared virtually anytime anywhere within a wireless broadband network.
4-Port Wireless-N Broadband Router to Share Wireless Internet Connection with More Users
MOFI3500-3GN also integrates router function so that Internet can be accessed through WIFI connection simultaneously. MOFI3500-3GN 4-port wireless-N router function provides an excellent solution for sharing a wireless Internet connection and files such as High Definition (HD) video, music, photos and documents with the wireless speed up to 300Mbps.
Advanced Wireless Security
MOFI NETWORK MOFI3500-3GN creates a secure Wi-Fi® network by supporting the latest wireless security features to prevent unauthorized access. It supports for 64/128-bit WEP, WPA, and WPA2 to ensure that you will be able to secure your Wi-Fi network, regardless of your client devices. In addition, the 3G Mobile Router utilizes dual active firewalls (SPI and NAT) to prevent potential attacks from across the Internet.
Wide Wireless Coverage
The product integrates with smart MIMO technology which overlays the signals of multiple radios that can successfully reduce “dead sports”, increase in throughput and increase the wireless coverage range.
Easy to install and Use
By connecting a HSDPA/HSUPA USB modem into the USB Host port of MOFI3500-3GN, surfing the internet can be accessed and shared virtually anywhere within a wire or wireless broadband network. You can also directly connect Ethernet-based devices to its built-in 4-port full-duplex 10/100 switch.
2.0 MAIN FEATURES
Dual function as 3G mobile broadband router and 4-port wireless-N router.
Support HSDPA/HSUPA (3G/3.5G) USB modem connection to offer a network connection with full mobility.
3.5G Easy connect/disconnect button for manual connection option.
Convert single user 3G USB modem into a multiple users ready Wi-Fi Router.
Support WAN connection via DSL/Cable modem to work as a wireless router.
Support IEEE802.11b/g and 11n wireless standard with the data transfer rate reaches up to 300Mbps.
Internet access sharing through high speed wireless and 4-Port 10/100M Ethernet.
Support for 64/128 bit WEP, WPA, and WPA2 ensure secure Wi-Fi network, and prevent unauthorized access
Adopt smart MIMO technology to increase throughput and increase wireless coverage range.
Wi-Fi Protected Setup (WPS) button allow easy configuration of a wireless network.
Detachable antennas allowing flexible gain performance antennas.
Slick, clean design and wall mountable to safe space.
2.1 Protocol/Standards
IEEE802.11b/g and 11n
IEEE 802.3 10/100, IEEE 802.3u
USB 2.0 OTG
2.2 Network Support
3G (UMTS) connectivity via a 3G USB Modem
PPPoE, DHCP and Static IP connectivity
MAC cloning support
IP/TCP/UDP/ICMP Application support
Network Address Translation (NAT)
Multi Range Port Forwarding
DHCP Server/client DNS Relay
Dynamic DNS support
2.3 Wireless Support
Modulation Support
IEEE802.11b (DSSS)
DBPSK: 1 Mbps
DQPSK: 2 Mbps
CCK: 5.5/11 Mbps
IEEE802.11g (OFDM/DSSS)
BPSK: 6/9 Mbps
QPSK: 12/18 Mbps
QAM-16: 24/36 Mbps
QAM-64 : 48/54 Mbps
IEEE802.11n (OFDM/DSSS)
BPSK
QPSK
QAM-16
QAM-64
Frequency Band 2.4GHz – 2.4835GHz
Wireless Security Support
WEP (64/128 bit)
WPA-PSK Personal / WPA2-PSK Personal
TKIP, AES
Stealth AP (Hidden ESSID, Deny any Access)
MAC Address Filtering
2.4 Security Support
NAT for basic Firewall support
Packet Filtering Firewall support
Stateful Packet Inspection support
Protection against Denial of Service attacks
Password Authentication For Router
3.0 Power Requirement
3.1 Wireless Transmit Power
802.11b (1 antenna): 18 +/- 1 dBm
802.11g (1 antenna): 17 +/- 1 dBm
802.11n (2 antenna): 17 +/- 1 dBm
4.0 PHYSICAL SPECIFICATION
4.1 LED Indicators
1 x Power LED
4 x Ethernet Link Status LED
1 x WAN Link Status
1 x Wireless LAN Link Status LED
1 x 3.5G Connection Status LED
1 x WIFI Protected Setup (WPS) LED
1 x USB Device LED
4.2 External Connectors
1 x DC Jack for Power Input
4 x RJ45 for LAN port
1 x RJ45 for WAN port
1 x USB type A
1 x 3.5G Connect/Disconnect Button
1 x WPS Button
1 x Factory Default Reset Button
4.3 Physical Dimension
200 mm x 125 mm x 30.5 mm
5.0 ENVIRONMENTAL
5.1 Temperature
Operating: 0o to 40 o Celsius (32 o to 104 o Fahrenheit)
Non-Operating: -25 o to 70 o Celsius (-13 o to 158 o Fahrenheit)
5.2 Humidity
Operating: 30% to 80% Relative Humidity (Non-Condensing)
Non-Operating: 30% to 95% Relative Humidity (Non-Condensing)
NOTE : Specifications subject to change without prior notice.
Here is the MoFi 3G Router / USB Broadband Modem Compatibility Chart Find out if your modem is compatible!
Dual-function router can be used as a standard high performance N Router that can use any 3G/3.5G USB modem* (portable internet) and share it with many wired or wireless or can use the standard Cable or DSL connection for your home or office.
1.0 OVERVIEW
Dual Function as HSPA Support for 3G Mobile Broadband Router and 4-Port Wireless-N Broadband Router
HSPA Support for 3G Mobile Broadband Router to Enjoy Full Mobility, and Wire-Free for Internet Connectivity Anywhere
MOFI NETWORK MOFI3500-3GN 4-Port Wireless-N Router plus HSPA Support for 3G Mobile Broadband is an IEEE802.11n wireless broadband Router with HSDPA/HSUPA 3G support. With a 3G HSDPA USB modem simply plug in the Router, an Internet connection can be accessed and shared virtually anytime anywhere within a wireless broadband network.
4-Port Wireless-N Broadband Router to Share Wireless Internet Connection with More Users
MOFI3500-3GN also integrates router function so that Internet can be accessed through WIFI connection simultaneously. MOFI3500-3GN 4-port wireless-N router function provides an excellent solution for sharing a wireless Internet connection and files such as High Definition (HD) video, music, photos and documents with the wireless speed up to 300Mbps.
Advanced Wireless Security
MOFI NETWORK MOFI3500-3GN creates a secure Wi-Fi® network by supporting the latest wireless security features to prevent unauthorized access. It supports for 64/128-bit WEP, WPA, and WPA2 to ensure that you will be able to secure your Wi-Fi network, regardless of your client devices. In addition, the 3G Mobile Router utilizes dual active firewalls (SPI and NAT) to prevent potential attacks from across the Internet.
Wide Wireless Coverage
The product integrates with smart MIMO technology which overlays the signals of multiple radios that can successfully reduce “dead sports”, increase in throughput and increase the wireless coverage range.
Easy to install and Use
By connecting a HSDPA/HSUPA USB modem into the USB Host port of MOFI3500-3GN, surfing the internet can be accessed and shared virtually anywhere within a wire or wireless broadband network. You can also directly connect Ethernet-based devices to its built-in 4-port full-duplex 10/100 switch.
2.0 MAIN FEATURES
Dual function as 3G mobile broadband router and 4-port wireless-N router.
Support HSDPA/HSUPA (3G/3.5G) USB modem connection to offer a network connection with full mobility.
3.5G Easy connect/disconnect button for manual connection option.
Convert single user 3G USB modem into a multiple users ready Wi-Fi Router.
Support WAN connection via DSL/Cable modem to work as a wireless router.
Support IEEE802.11b/g and 11n wireless standard with the data transfer rate reaches up to 300Mbps.
Internet access sharing through high speed wireless and 4-Port 10/100M Ethernet.
Support for 64/128 bit WEP, WPA, and WPA2 ensure secure Wi-Fi network, and prevent unauthorized access
Adopt smart MIMO technology to increase throughput and increase wireless coverage range.
Wi-Fi Protected Setup (WPS) button allow easy configuration of a wireless network.
Detachable antennas allowing flexible gain performance antennas.
Slick, clean design and wall mountable to safe space.
2.1 Protocol/Standards
IEEE802.11b/g and 11n
IEEE 802.3 10/100, IEEE 802.3u
USB 2.0 OTG
2.2 Network Support
3G (UMTS) connectivity via a 3G USB Modem
PPPoE, DHCP and Static IP connectivity
MAC cloning support
IP/TCP/UDP/ICMP Application support
Network Address Translation (NAT)
Multi Range Port Forwarding
DHCP Server/client DNS Relay
Dynamic DNS support
2.3 Wireless Support
Modulation Support
IEEE802.11b (DSSS)
DBPSK: 1 Mbps
DQPSK: 2 Mbps
CCK: 5.5/11 Mbps
IEEE802.11g (OFDM/DSSS)
BPSK: 6/9 Mbps
QPSK: 12/18 Mbps
QAM-16: 24/36 Mbps
QAM-64 : 48/54 Mbps
IEEE802.11n (OFDM/DSSS)
BPSK
QPSK
QAM-16
QAM-64
Frequency Band 2.4GHz – 2.4835GHz
Wireless Security Support
WEP (64/128 bit)
WPA-PSK Personal / WPA2-PSK Personal
TKIP, AES
Stealth AP (Hidden ESSID, Deny any Access)
MAC Address Filtering
2.4 Security Support
NAT for basic Firewall support
Packet Filtering Firewall support
Stateful Packet Inspection support
Protection against Denial of Service attacks
Password Authentication For Router
3.0 Power Requirement
3.1 Wireless Transmit Power
802.11b (1 antenna): 18 +/- 1 dBm
802.11g (1 antenna): 17 +/- 1 dBm
802.11n (2 antenna): 17 +/- 1 dBm
4.0 PHYSICAL SPECIFICATION
4.1 LED Indicators
1 x Power LED
4 x Ethernet Link Status LED
1 x WAN Link Status
1 x Wireless LAN Link Status LED
1 x 3.5G Connection Status LED
1 x WIFI Protected Setup (WPS) LED
1 x USB Device LED
4.2 External Connectors
1 x DC Jack for Power Input
4 x RJ45 for LAN port
1 x RJ45 for WAN port
1 x USB type A
1 x 3.5G Connect/Disconnect Button
1 x WPS Button
1 x Factory Default Reset Button
4.3 Physical Dimension
200 mm x 125 mm x 30.5 mm
5.0 ENVIRONMENTAL
5.1 Temperature
Operating: 0o to 40 o Celsius (32 o to 104 o Fahrenheit)
Non-Operating: -25 o to 70 o Celsius (-13 o to 158 o Fahrenheit)
5.2 Humidity
Operating: 30% to 80% Relative Humidity (Non-Condensing)
Non-Operating: 30% to 95% Relative Humidity (Non-Condensing)
NOTE : Specifications subject to change without prior notice.
Here is the MoFi 3G Router / USB Broadband Modem Compatibility Chart Find out if your modem is compatible!
Who has used Antenna Gear products?
Here are a couple new AntennaGear brochures! We have had many great recurring customers over the years which include: Corporate, Government Agencies and Mobile Broadband Service Providers.
Please visit the website for more information, contact our customer service representatives or for corporate accounts please contact the Senior Corporate Account Manager.
New 4G antennas out for Verizon!
We are not updating our Blog again! Quick BIG updates:
We now have 4G (700MHz LTE) antennas available for the following modems:
Verizon LG VL600
Verizon Pantech UML290
Verizon Novatel USB551L.
If you're wondering where your antenna ports may be then here are some pictures that will help you out with this:
Verizon LG VL600:
Verizon Pantech UML290:
For more information about antenna port locations for your mobile broadband card please see our Antenna Port Location Guide
We now have 4G (700MHz LTE) antennas available for the following modems:
Verizon LG VL600
Verizon Pantech UML290
Verizon Novatel USB551L.
If you're wondering where your antenna ports may be then here are some pictures that will help you out with this:
Verizon LG VL600:
Verizon Pantech UML290:
For more information about antenna port locations for your mobile broadband card please see our Antenna Port Location Guide
Sunday, April 18, 2010

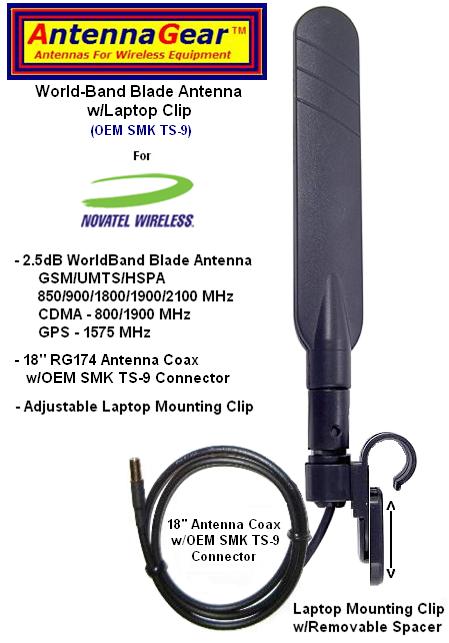

Novatel Wireless Verizon USB760, Sprint U760 USB Modem BLADE Antenna w/Laptop Clip
AntennaGear.net Introduces The BLADE Antenna w/Laptop Clip for Novatel Wireless Verizon USB760, Sprint U760 USB Modem
